Shelbourne Reynolds CB150 Cubicle Bedder
Call us on 01305 266058 or email sales@highwood-ag.co.uk if you would like further information on this item.
New Shelbourne Reynolds CB150 Cubicle Bedder.
In Stock Now ,
D
ESCRIPTION
The Shelbourne Reynolds CB150 Cubicle Bedder has a capacity of 1.2m³. Its large capacity is suited for large scale operations and therefore suited for use with larger handlers.

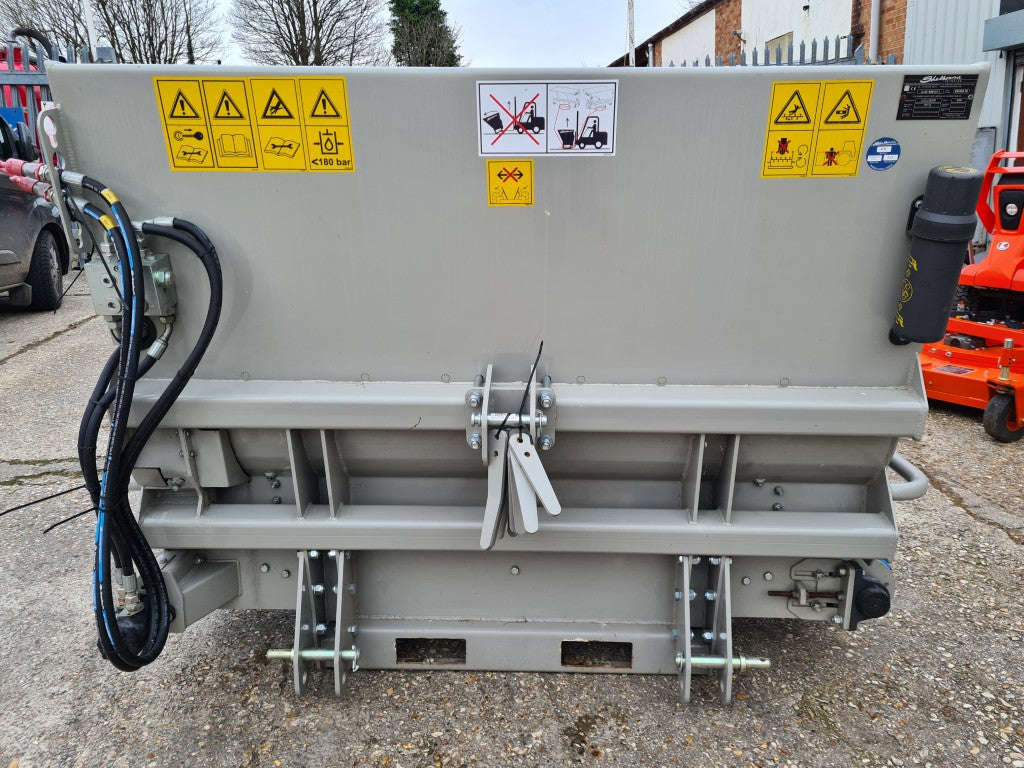

Three mounting options consist of:
- Handler brackets to suit most brands which can either be bolt on using the laser knock out holes or welded
- Tractor 3 point linkage brackets
- Hydraulic 3 point linkage tipping frame
FEATURES
300mm wide heavy duty conveyor belt
Hydraulic drive system
Adjustable control sides
Bi-Directional hydraulic belt drive
Chain driven agitator
Side protection bar
Hydraulic flow control valve

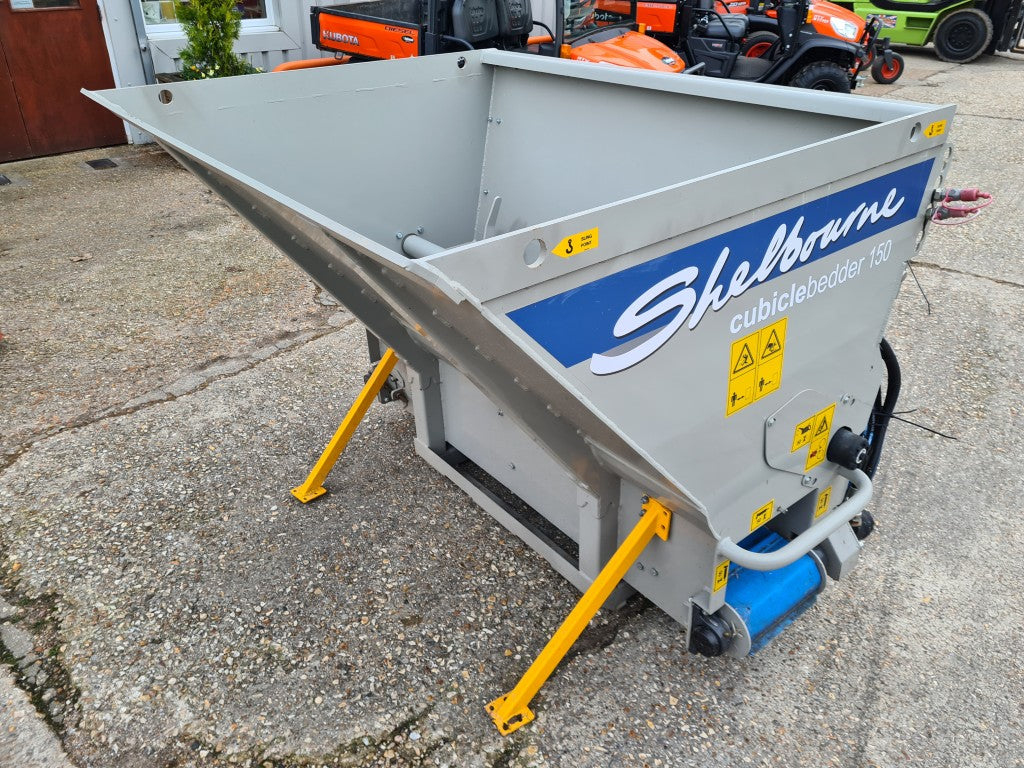

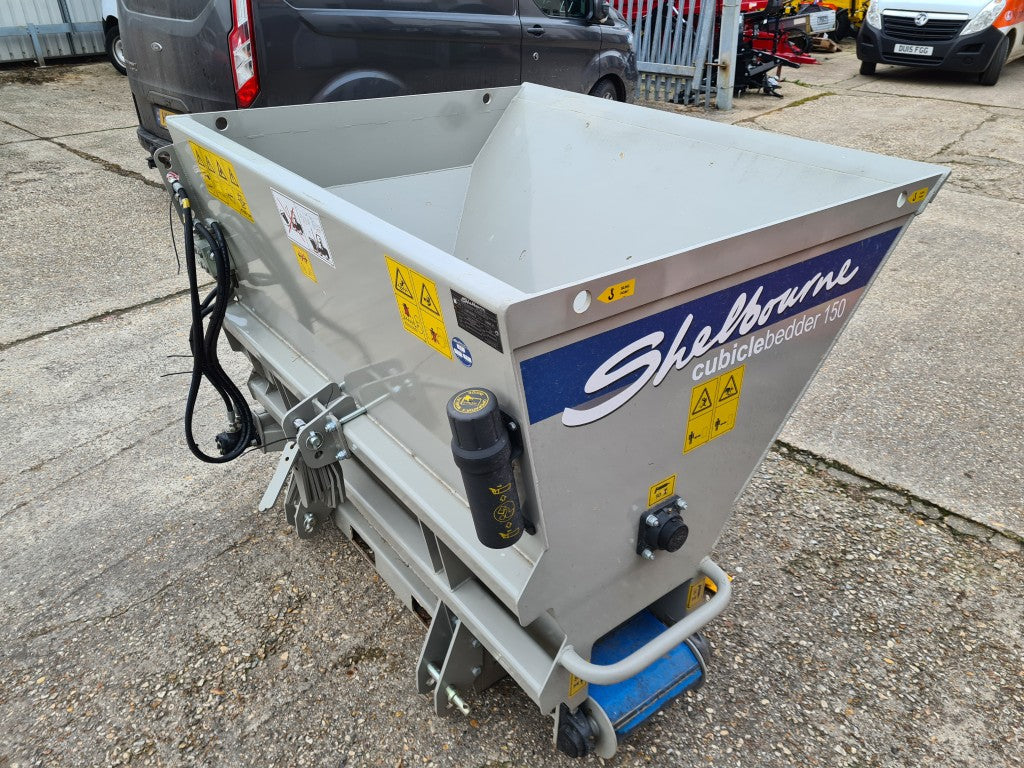

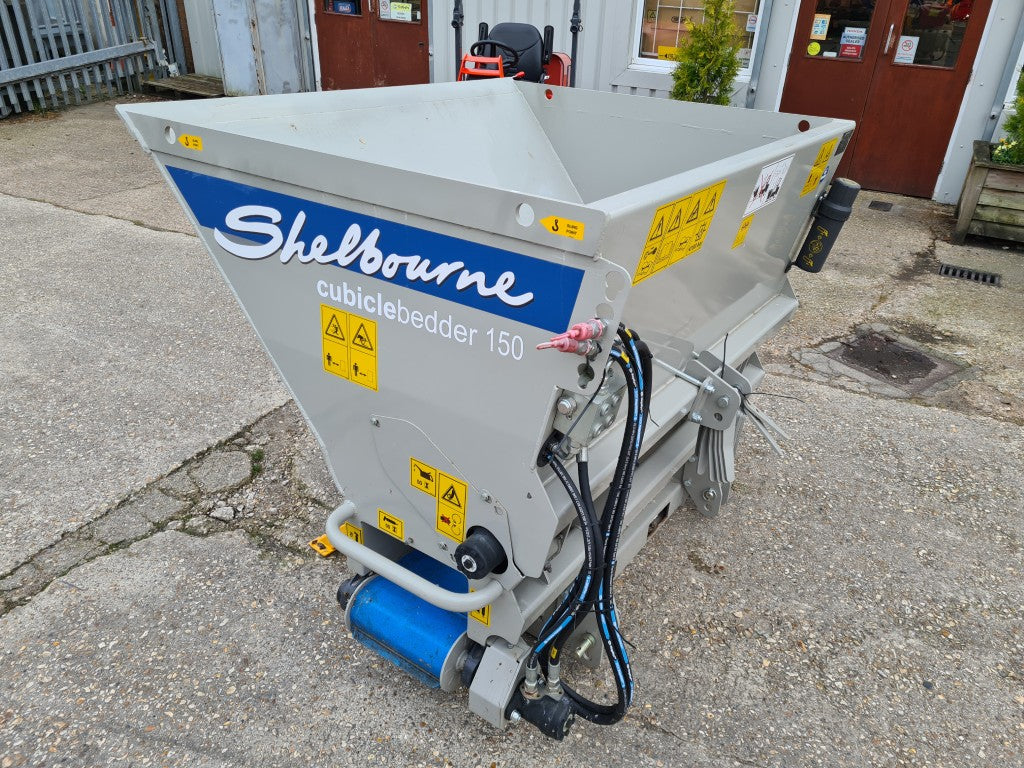

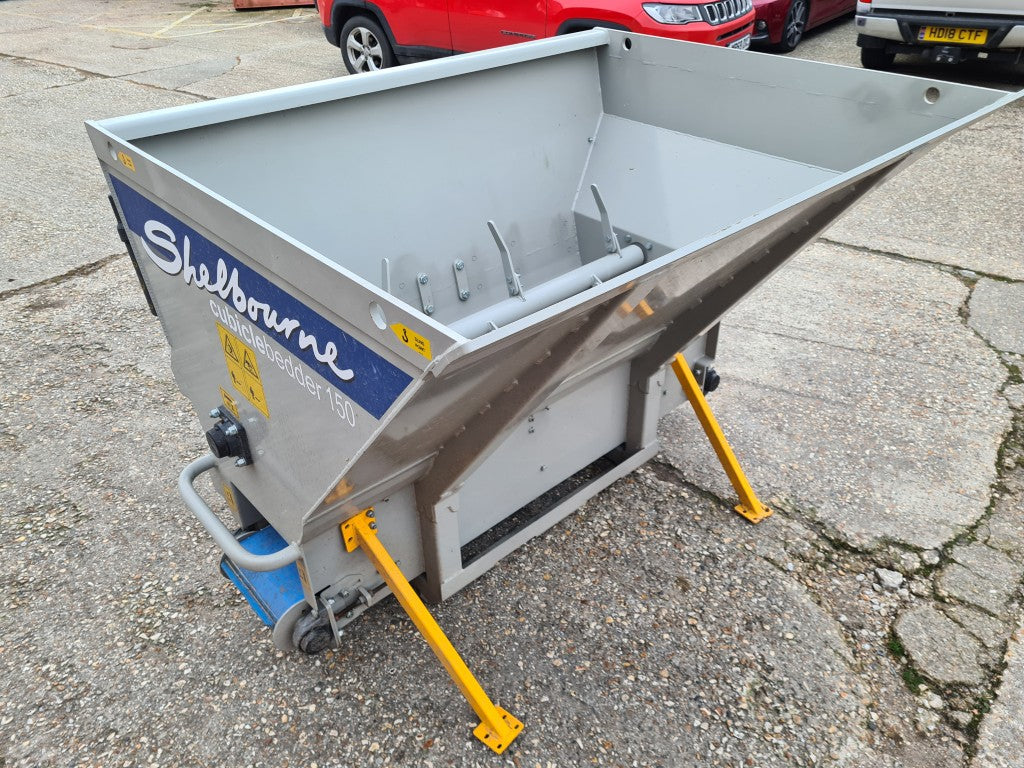

The Shelbourne Cubicle Bedder consists of a rugged welded steel bucket with a 30cm wide hydraulically driven cleated belt running in the bottom. This belt will operate in either direction allowing the operator to bed cubicles on either side of the machine.
Rate of discharge can be varied using adjustable internal slides as well as varying the speed of the belt using the tractor/loader hydraulic flow control.

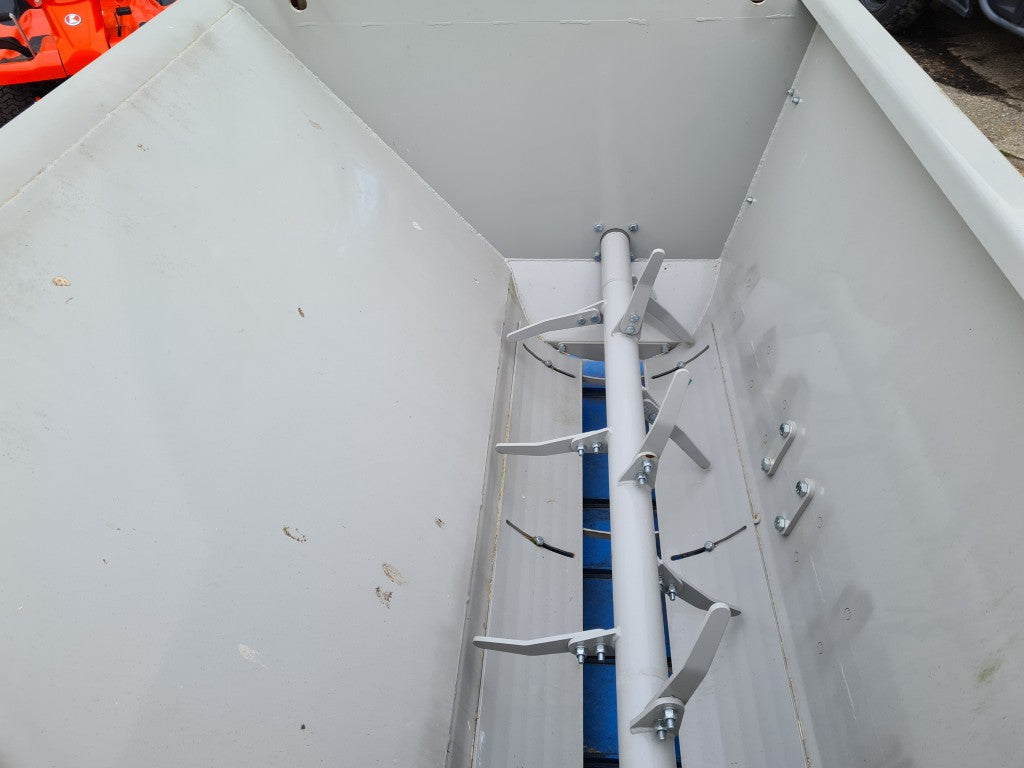

A centrally mounted agitator shaft is operated hydraulically above the belt with beater tines to prevent bridging and ensure even feeding down onto the belt. Tines can be removed according to the type of material being used.
